PCB Drill Bits Manufacturer
PCB Drill Bits
DB is an PCB drill bits manufacturer that offers a wide of drill bits. Our PCB drill bits factory in China offers precision drilling solutions for the electronics industry.
DB is also a supplier of PCB drill bits automatic ring setting machine, designed to enhance the efficiency and productivity of your PCB drilling process.
PCB drill bits are meticulously designed to deliver precise and accurate drilling in the production of printed circuit boards(also named PCB). With advanced manufacturing techniques and superior materials, DB drill bits offer exceptional performance and reliability.

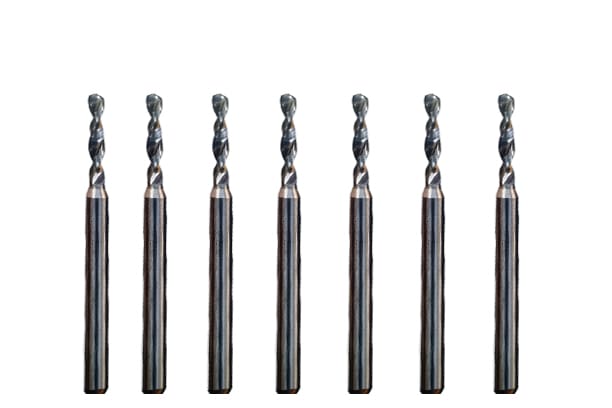

UC Series PCB Under Cut Drill Bits
ST Series PCB Straight Drill Bits

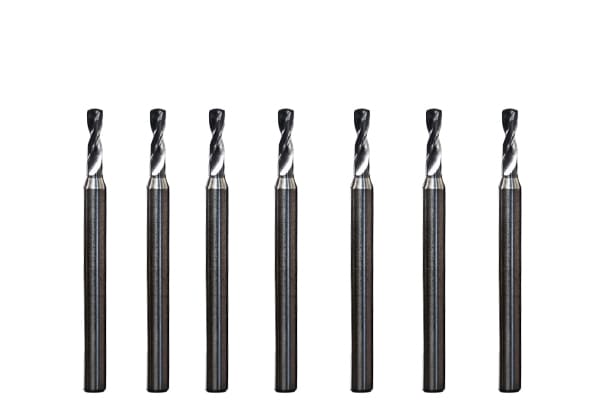

SL Series PCB Slot Drill Bits
LST Series PCB Large Straight Drill Bits

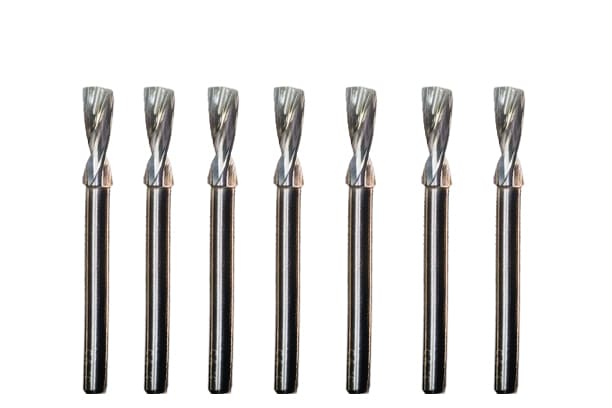

HST Series PCB Drill Bits
Various Ring Set Options
REQUEST A QUOTE FOR MORE DETAILS
All You Need To Know About PCB Drill Bits
PCB drill bits are specialized tools used in PCB manufacturing for precise drilling operations. They play a crucial role in ensuring the accuracy and reliability of PCB circuit boards.
Scope of Use for PCB Drill Bits
PCB drill bits find wide applications in various fields, including:
- PCB Manufacturing: Used for drilling holes on printed circuit boards to provide pathways for electronic component installation and connectivity.
- Prototyping: Utilized for drilling holes in sample and prototype boards for functionality verification and testing.
- Research and Development: Applied in the research and development of new PCB designs and manufacturing technologies.
How PCB Drill Bits Work
PCB drill bits operate through rotation and downward pressure. The cutting edges remove material, creating the desired holes. By adjusting the rotation speed and downward force, the diameter and depth of the drill holes can be controlled.
Factors to Consider When Purchasing PCB Drill Bits
Several key factors should be considered when buying PCB drill bits:
- Hole Size: Choose PCB Drill Bits that are suitable for the desired hole diameter to ensure accuracy and consistency.
- Cutting Speed and Feed Rate: Determine the appropriate cutting speed and feed rate based on the hardness and characteristics of the PCB material for optimal drilling results.
- Wear Resistance and Longevity: Consider the wear resistance and longevity of PCB Drill Bits to select high-quality products that are suitable for long-term use.
- Supplier Reliability: Select a trusted supplier like DB to ensure product quality and timely delivery.
PCB Drill Bits by Size
PCB Drill Bits can be classified based on their size. Different sizes cater to various hole requirements and PCB design specifications. We offer a range of PCB Drill Bits sizes to meet diverse application needs.
Size Classification | Diameter Range |
Micro Size | 0.1mm – 0.5mm |
Small Size | 0.6mm – 1.2mm |
Medium Size | 1.3mm – 2.5mm |
Large Size | 2.6mm – 4.0mm |
Extra Large Size | 4.1mm and above |
PCB Drill Bits by Material
PCB Drill Bits can also be classified based on the materials they are made from. Common materials for PCB Drill Bits include solid carbide, high-speed steel (HSS), and polycrystalline diamond (PCD). Each material has its own characteristics and suitability, allowing for tailored selections based on specific requirements.
Solid Carbide:
- Characteristics: Solid carbide drill bits are known for their high hardness, excellent wear resistance, and heat resistance.
- Application: Ideal for drilling in abrasive materials and high-density PCBs.
High-Speed Steel (HSS):
- Characteristics: HSS drill bits offer good toughness, versatility, and cost-effectiveness.
- Application: Suitable for drilling in a wide range of materials, including soft metals, plastics, and standard PCBs.
Polycrystalline Diamond (PCD):
- Characteristics: PCD drill bits feature a diamond coating, providing exceptional hardness, abrasion resistance, and thermal conductivity.
- Application: Specifically designed for drilling in highly abrasive materials, such as ceramics, fiberglass, and carbon fiber-reinforced laminates.
Tungsten Carbide:
- Characteristics: Tungsten carbide drill bits exhibit high strength, hardness, and wear resistance.
- Application: Widely used in PCB drilling due to their ability to withstand high-speed and high-temperature conditions.
PCB Drill Bits by Application
PCB Drill Bits can be classified based on their specific purposes and special functions. For example, V-scoring drills, back drills, and stacked via drills fall under different application classifications. Choose the appropriate type of PCB Drill Bits based on specific application requirements.
V-Scoring Drilling:
- Application: Used for creating V-shaped grooves on PCBs to facilitate easy bending or breaking of the board during assembly.
Back Drilling:
- Application: Used to remove unwanted copper fillings between specific layers of inner or multilayer PCBs, reducing signal interference.
Stacked Via Drilling:
- Application: Used in stacked via technology, where drilling is performed through multiple layers of the PCB to connect different circuit layers.
Castellated Hole Drilling:
- Application: Used for drilling holes along the edge of the PCB, creating holes with metal teeth for soldering with other electronic components.
Special Design Hole Drilling:
- Application: Customized drilling operations to meet specific PCB design requirements, such as blind holes, cover plate holes, and buried vias.
Alternatives to PCB Drill Bits
In addition to PCB Drill Bits, there are alternative methods and tools for drilling. Common alternatives include laser drilling, plasma drilling, and chemical etching. Each alternative has its pros and cons, and the choice depends on specific needs.
PCB Drill Bits vs. Alternatives
We will compare PCB Drill Bits with common alternative methods, such as laser drilling, plasma drilling, and chemical etching. The comparison will focus on factors such as precision, speed, cost-effectiveness, and suitability for different PCB materials and designs.
| Method | Advantages | Disadvantages |
|---|---|---|
| PCB Drills | – Cost-effective – Suitable for various PCB materials and designs – High precision and accuracy | – Requires time and effort for diameter changes – Not suitable for non-standard shapes and unconventional drilling needs |
| Laser Drilling | – Non-contact processing, suitable for brittle materials and thin boards – High precision and resolution – Suitable for non-standard shapes and unconventional drilling needs | – High investment cost for equipment and maintenance – Requires specialized skills and precision equipment – Potential heat-affected zone for certain PCB materials |
| Plasma Drilling | – High-speed drilling for large hole diameters and high-volume production – Capability to drill on complex materials such as ceramics and composites – Suitable for high-speed and high-temperature environments | – High investment cost for equipment and maintenance – Requires specialized skills and precision equipment – Potential gas emissions and environmental pollution |
| Chemical Etching | – Suitable for manufacturing complex patterns and fine hole diameters – Can be performed on irregular surfaces – Capable of handling large areas and high-volume production | – Requires additional chemicals and processing equipment – High safety requirements for operators, requiring strict safety measures – Potential environmental pollution risks |
Advantages of DB PCB Drill Bits
DB PCB Drill Bits offer the following advantages, making them the preferred choice:
- High Precision and Efficiency: Our PCB Drill Bits employ advanced manufacturing processes, ensuring excellent drilling accuracy and efficient cutting capabilities to enhance production efficiency.
- Durability: We use high-quality materials to manufacture PCB Drill Bits, providing outstanding wear resistance and long lifespan, reducing the frequency of replacements and production costs.
- Customization Capability: In addition to standard specifications, we offer options for customized PCB Drill Bits to meet specific customer requirements.
- Superior Customer Service: We are committed to providing high-quality customer service, including timely responses, accurate quotations, and flexible delivery options.
Experience the precision, efficiency, and versatility of our DB PCB drill bits. Partner with us and unlock the full potential of your PCB manufacturing process.
Contact our team today to learn more about our DB PCB drill bits and how they can meet your drilling needs.
